Safety Locks
Categories

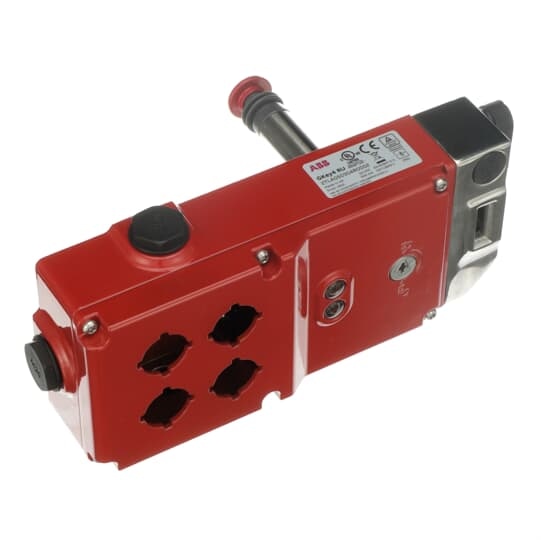

ABB 2TLA050304R0002
Safety lock GKey with 4 positions for pilot devices, die-cast housing, escape release and manual unlock function. Can be mounted on hinged doors and on sliding doors, both on the left and on the right. Delivered with mechanical tongue actuator, RFID actuator, entry cover and screw bit.GKey is a robust safety lock with a die cast housing for hinged and sliding doors. GKey offers an interlocking function reaching up to PL e/SIL 3 with high level coding. Power is needed to unlock GKey which makes GKey a safety lock. GKey is fitted with a rear escape release button and manual unlocking (auxiliary release). GKey offers four positions for 22 mm pilot devices.

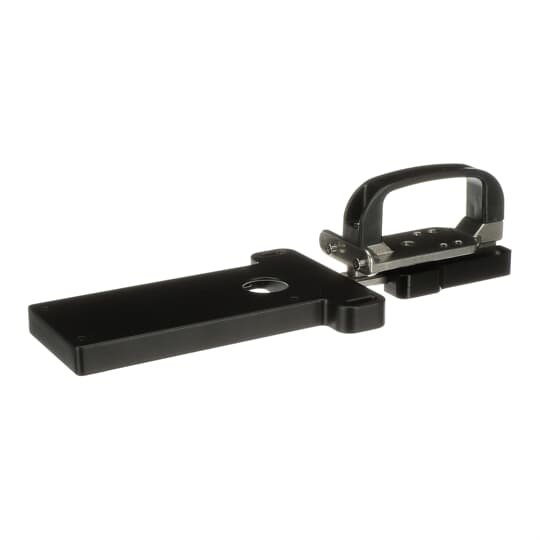

ABB 2TLA050310R0032
Front slide handle for GKey4. Can be mounted on hinged doors and on sliding doors, both on the left and on the right. Includes a mounting plate for GKey4.GKey is a robust safety lock with a die cast housing for hinged and sliding doors. GKey offers an interlocking function reaching up to PL e/SIL 3 with high level coding. Power is needed to unlock GKey which makes GKey a safety lock. GKey is fitted with a rear escape release button and manual unlocking (auxiliary release). GKey offers four positions for 22 mm pilot devices.

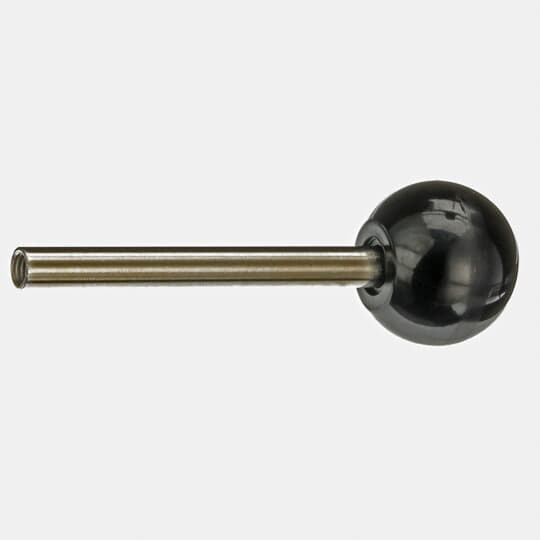

ABB 2TLA050040R0510
Rear handle for GKey front slide handle and MKey slide lock. The rear handle is necessary to open or close the slide handle from inside the protected area.

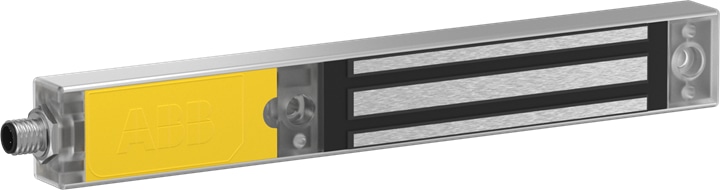

ABB 2TLA042022R3000
Magne 4X DYN M12-5 is an electromagnetic lock providing safe interlocking thanks to an an integrated Adam DYN safety sensor. Its M12-5 male connector facilitates connexion. A +24VDC voltage is used for the locking. The holding force is up to 1500N and the protection class IP67. The Eva actuactor and the anchor plate must be ordered separately.Magne is an electromagnetic process lock intended for locking doors and hatches. It is usually used to prevent unwanted process interruptions, e.g. during a welding operation. With Adam and Eva, a PLe can be reached for the interlocking function.

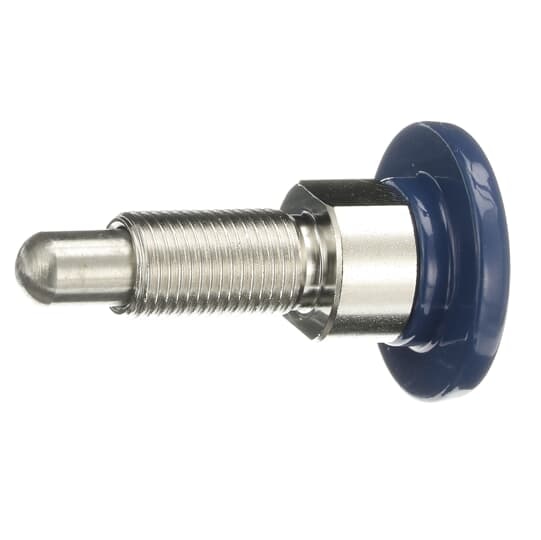

ABB 2TLA050040R0511
Spring loaded catch for Gkey slide handle and Mkey slide lock. The catch prevents from closing the door by mistake: when the sliding handle is in open position, the catch must be pulled in order to push back the handle to closed position.

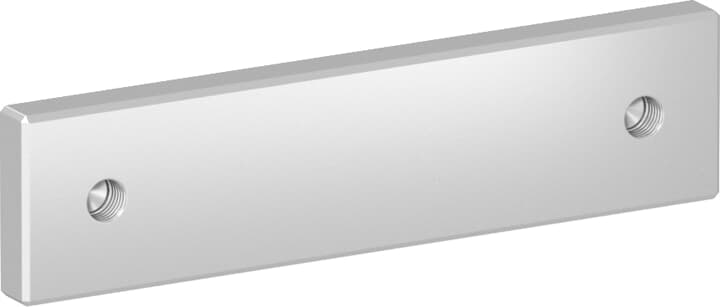

ABB 2TLA042023R0400
Anchor plate with permanent magnet. Holding force: 30N. Delivered with cellular rubber.A permanent magnet keeps the door/hatch closed when the Magne is unlocked. The door can still easily be opened. 2 mounting holes.
Safety Locks - Best sellers
What is Safety Locks ?
Safety locks are critical components in industrial safety systems designed to prevent access to hazardous areas and machinery during operation. They play a vital role in ensuring the safety of personnel by securely locking doors, gates, and guards.
In industrial settings, safety locks are employed in various applications, including machinery maintenance, lockout/tagout procedures, and equipment isolation. They provide a reliable means of preventing accidental access to dangerous areas.
How do safety locks contribute to industrial safety?
Safety locks act as physical barriers, preventing unauthorized access to machinery and hazardous zones. They ensure that maintenance or servicing is conducted safely and that machinery cannot be operated without proper authorization.
What are some common industrial applications where safety locks are used?
Safety locks are utilized in scenarios involving equipment with moving parts, energy sources, and confined spaces. They are essential for maintaining compliance with safety regulations and protecting workers.
What are the recent advancements in safety lock technology for industrial use?
Recent advancements include electronic safety locks with access control features, integration with safety PLCs, and remote monitoring capabilities. These innovations enhance the flexibility and effectiveness of safety lock systems in industrial safety.
